Part Names

Attaching the Strap

(1) Mode dial
(2) // Power/multi-function lock switch
(3) Main dial
(4) / Multi-function/send images to smartphone button
(5) Shutter button
(6) Movie shooting button/movie-photo playback toggle button
(7) Self-timer lamp/AF-assist beam
(8) Grip (battery compartment)
(9) DC cord hole
(10) Depth-of-field preview button
(11) Contacts
(12) Lens mount

(13) Shoe cover
(14) Flash sync contacts
(15) Multi-function shoe
(16) RF lens mount index
(17) / Still photo shooting/movie recording switch
(18) Focal plane mark
(19) Strap mount
(20) Tally lamp
(21) Microphone
(22) Shutter curtain/Image sensor
(23) Lens release button
(24) Lens lock pin
(25) Body cap

(1) Eyecup
(2) Viewfinder eyepiece
(3) Menu button
(4) Speaker
(5) Terminal cover
(6) AF start button
(7) Quick control dial 2
(8) Multi-controller (can also be pressed straight in)
(9) Magnify/reduce button
(10) Quick Control button
(11) Quick control dial 1

(12) Set button
(13) Playback button
(14) Info button
(15) Viewfinder sensor
(16) / Color mode/rating button
(17) External microphone IN terminal
(18) Digital terminal
(19) Headphone terminal
(20) HDMI OUT terminal
(21) Remote control terminal

(1) Dioptric adjustment knob
(2) Screen
(3) Accessory positioning hole
(4) Tripod socket
(5) Serial number (body number)
(6) Erase button
(7) AE lock button
(8) AF point selection button

(9) Strap mount
(10) Access lamp
(11) Card slot cover
(12) Card slot 1
(13) Card slot 2
(14) Battery compartment cover lock
(15) Battery compartment cover
(16) Accessory positioning hole

Mode dial

The Mode dial is divided into Basic Zone and Creative Zone modes.

In Basic Zone modes, the camera determines optimal settings for the subject or scene. In Creative Zone modes, you can shoot with your preferred exposure or other settings.

(1) Basic Zone

(2) Creative Zone / (3) Custom shooting mode

Mode dial and shooting modes

Mode Dial		Shooting Mode
Mode Dial		Still Photo Shooting		Movie Recording
Basic Zone		Scene Intelligent Auto		Scene Intelligent Auto movie
	Special scene	Portrait	Panning	Smooth skin movie Movie for close-up demos Movie IS mode HDR movie
		Smooth skin	Close-up
		Group photo	Food
		Landscape	Night portrait
		Panoramic shot	Handheld night scene
		Sports	HDR backlight control
		Kids	Silent shutter
Creative Zone	Fv	Flexible-priority AE		Movie auto exposure
	P	Program AE		Movie auto exposure
	Tv	Shutter-priority AE		Movie shutter-priority AE
	Av	Aperture-priority AE		Movie aperture-priority AE
	M	Manual exposure		Movie manual exposure
	B	Long (bulb) exposures		Movie auto exposure
		Program AE		Slow/fast motion movie
	Custom shooting mode	Custom shooting		Custom movie recording

Battery Charger LC-E6

Charger for Battery Pack LP-E6P/LP-E6NH/LP-E6N/LP-E6 ().

(1) Battery slot
(2) Charge lamp

(3) Power plug

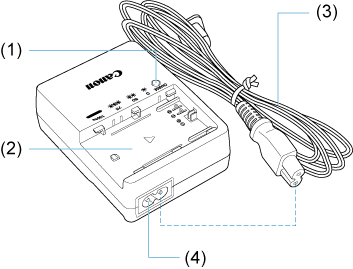

Battery Charger LC-E6E

Charger for Battery Pack LP-E6P/LP-E6NH/LP-E6N/LP-E6 ().

(1) Charge lamp
(2) Battery slot

(3) Power cord
(4) Power cord socket

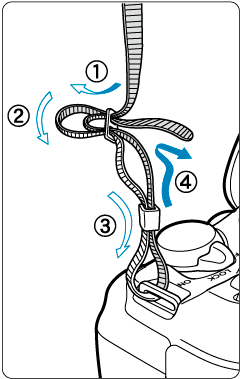

Attaching the Strap

Pass the end of the strap through the strap mount from the bottom, then pass it through the strap buckle as shown. Pull the strap to take up any slack and make sure the strap will not loosen from the buckle.
