Part Names

  1. (1) Mode dial
  2. (2) // 5/white balance/movie-photo playback toggle button
  3. (3) Main dial
  4. (4) Movie shooting button (top)/shutter button
  5. (5) Zoom lever

    During shooting: W Wide-angle/T Telephoto

    During playback: Index/ Magnify

  6. (6) // 4/Multi-function/send images to smartphone button
  7. (7) Grip (battery compartment)
  8. (8) DC cord hole
  9. (9) Self-timer lamp/AF-assist beam
  10. (10) Lens mount
  11. (11) Contacts
  12. (12) // 6/Live streaming/image search button
  1. (13) RF lens mount index
  2. (14) Image sensor
  3. (15) Tally lamp
  4. (16) Strap mount
  5. (17) Lens release button
  6. (18) Exhaust vent
  7. (19) Terminal cover
  8. (20) Lens lock pin
  9. (21) REC Movie shooting button (front)
  10. (22) Shoe cover
  11. (23) Body cap
  12. (24) Headphone terminal
  13. (25) Remote control terminal
  14. (26) External microphone IN terminal
  15. (27) HDMI OUT terminal
  16. (28) Digital terminal
  1. (1) Multi-function shoe
  2. (2) Microphone
  3. (3) Focal plane mark
  4. (4) / Still photo shooting/movie recording switch
  5. (5) // 7/Color mode/rating button
  6. (6) Menu button
  7. (7) Speaker
  8. (8) Multi-controller (can also be pressed straight in)
  9. (9) / 1/AF start button
  1. (10) Quick control dial 2
  2. (11) Strap mount
  3. (12) / Power switch
  4. (13) / 3/AE lock button
  5. (14) Tripod socket
  6. (15)/ 2/magnify/reduce button
  7. (16) Card slot cover
  8. (17) Card slot 2
  9. (18) Card slot 1
  1. (1) Screen
  2. (2) Access lamp
  3. (3) Intake vent
  4. (4) Tripod socket
  5. (5) Serial number (body number)
  6. (6) Set button
  7. (7) / Quick control dial 1/cross keys
  8. (8) Battery compartment cover
  9. (9) Battery compartment cover lock
  10. (10) Info button
  1. (11) /ZEBRA Up/zebra button
  2. (12) / Left/AF point selection button
  3. (13) Playback button
  4. (14) Quick Control button
  5. (15) /PEAKING Right/peaking button
  6. (16) /AUDIO STATUS Down/audio status button
  7. (17) / Multi-function lock/erase button

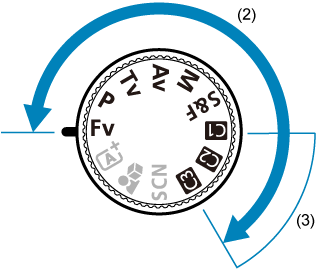

Mode dial

The Mode dial is divided into Basic Zone and Creative Zone modes.

In Basic Zone modes, the camera determines optimal settings for the subject or scene. In Creative Zone modes, you can shoot with your preferred exposure or other settings.

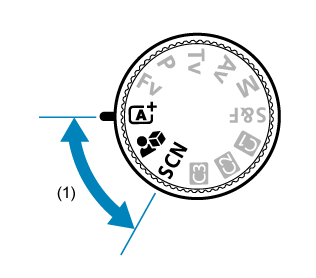

(1) Basic Zone

(2) Creative Zone / (3) Custom shooting mode

Mode dial and shooting modes

Mode Dial Shooting Mode
Movies Movie Recording Still photos Still Photo Shooting
Basic Zone Scene Intelligent Auto Scene Intelligent Auto movie Scene Intelligent Auto
Movie for close-up demos Movie for close-up demos

Special scene

Special scene

Smooth skin movie

Movie IS mode

HDR movie

Portrait

Smooth skin

Panoramic shot

Food

Handheld night scene
Creative Zone Fv Movie auto exposure Flexible-priority AE
P Program AE
Tv Movie shutter-priority AE Shutter-priority AE
Av Movie aperture-priority AE Aperture-priority AE
M Movie manual exposure Manual exposure
Slow and fast motion Slow/fast motion movie Program AE

Custom shooting mode 1Custom shooting mode 2Custom shooting mode 3

Custom shooting mode

 Custom movie recording Custom shooting

Battery Charger LC-E6

Charger for Battery Pack LP-E6P/LP-E6NH/LP-E6N/LP-E6 ().

  1. (1) Battery slot
  2. (2) Charge lamp
  1. (3) Power plug

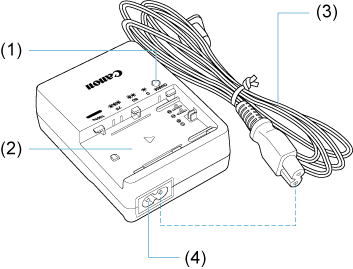

Battery Charger LC-E6E

Charger for Battery Pack LP-E6P/LP-E6NH/LP-E6N/LP-E6 ().

  1. (1) Charge lamp
  2. (2) Battery slot
  1. (3) Power cord
  2. (4) Power cord socket

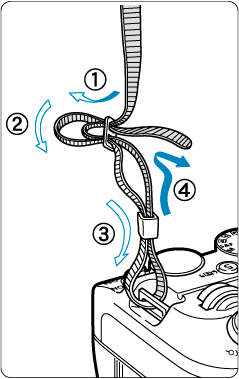

Attaching the Strap

Pass the end of the strap through the strap mount from the bottom, then pass it through the strap buckle as shown. Pull the strap to take up any slack and make sure the strap will not loosen from the buckle.
