Part Names
- (1) Shutter button/movie shooting button
- (2) Zoom lever
During shooting: W Wide-angle/T Telephoto
During playback:
Index/
Magnify - (3) AF-assist beam/red-eye reduction/self-timer/remote control lamp
- (4) RF lens mount index
- (5) Image sensor
- (6) Grip
- (7) Contacts
- (8) Lens mount
- (9) Microphone
- (10) Speaker
- (11) Strap mount
- (12) Tally lamp
- (13) Terminal cover
- (14) Lens release button
- (15) Lens lock pin
- (16) REC Movie shooting button (front)
- (17)
External microphone IN terminal - (18)
Headphone terminal - (19)
Remote control terminal - (20)
HDMI micro OUT terminal - (21)
Digital terminal - (22) Shoe cover
- (23) Body cap
- (1) Multi-function shoe
- (2)
Playback button - (3)
Menu button - (4) Screen
- (5) Mode dial
- (6)
/
/
1/stream/movie-photo playback toggle button - (7) LOCK Multi-function lock button
- (8) Strap mount
- (9)
/
Power switch - (10)
Main dial - (11) Serial number (body number)
- (12)
/
/
2/AF start/send images to smartphone button - (13)
/
/
3/color mode/image search button - (14)
/
Quick control dial/cross keys
- (15)
/
Left/autofocus/manual focus button - (16)
/WB Down/white balance button - (17)
Info button - (18)
/ISO/
Up/ISO/erase button - (19)
/
/
Right/self-timer/drive mode selection button - (20)
Quick Control/Set button - (21) Access lamp
- (22) Tripod socket
- (23) Card/battery compartment cover
- (24) Card/battery compartment cover lock
- (25) Tripod socket

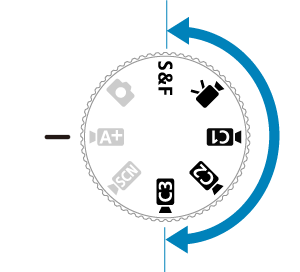

Mode Dial
The Mode dial is divided into Basic and Creative zones for movies and a zone for still photo shooting.
(1) Basic Zone movie modes
Simply press the movie shooting button and the camera sets everything to suit the subject or scene for shooting.
To select a recording mode in
mode, tap an icon in the upper left of the screen.
: Scene Intelligent Auto movie ()
[ ] |
Smooth skin movie |
|---|---|
[ ] |
Movie for close-up demos |
[ ] |
Movie IS mode |

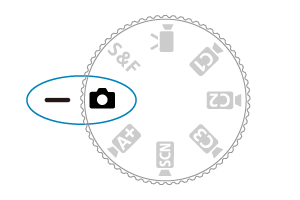

(2) Creative Zone movie modes ()
Record movies with your preferred exposure or other settings.
To select a recording mode for
or
, tap an icon in the upper left of the screen.
: Slow/fast motion movies
[ ] |
S&F movie auto exposure |
|---|---|
[ ] |
S&F movie shutter-priority AE |
[ ] |
S&F movie aperture-priority AE |
[ ] |
S&F movie manual exposure |
: Advanced movies
| [] |
Movie auto exposure |
|---|---|
[ ] |
Movie shutter-priority AE |
[ ] |
Movie aperture-priority AE |
[ ] |
Movie manual exposure |
In Basic Zone modes, the camera determines optimal settings for the subject or scene.
In Creative Zone modes, you can shoot with your preferred exposure or other settings.
To select a shooting mode, tap an icon in the upper left of the screen.
- Basic Zone
[ ] |
Scene Intelligent Auto |
|---|---|
[ ] |
Self portrait |
[ ] |
Portrait |
[ ] |
Smooth skin |
[ ] |
Panorama |
[ ] |
Food |
[ ] |
Handheld night scene |
- Creative Zone
| [P] | Program AE |
|---|---|
| [Tv] | Shutter-priority AE |
| [Av] | Aperture-priority AE |
| [M] | Manual exposure |
| [B] | Bulb exposure |
Battery Charger LC-E17
Charger for Battery Pack LP-E17 ().
- (1) Power plug
- (2) Charge lamp
- (3) Full-charge lamp
- (4) Battery slot

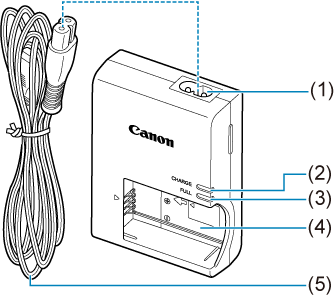

Battery Charger LC-E17E
Charger for Battery Pack LP-E17 ().
- (1)Power cord socket
- (2)Charge lamp
- (3)Full-charge lamp
- (4)Battery slot
- (5)Power cord

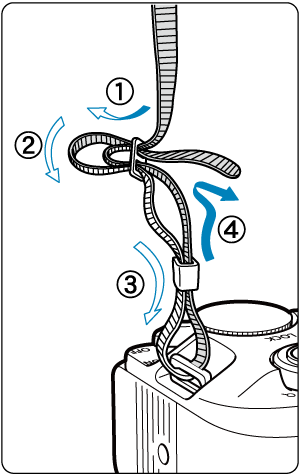

Attaching the Strap
Pass the end of the strap through the strap mount from the bottom, then pass it through the strap buckle as shown. Pull the strap to take up any slack and make sure the strap will not loosen from the buckle.
