Information Display

Still Photo Shooting Screen

Each time you press the INFO button, the information display will change.

  • The display will show only the settings currently applied.
  1. (1) Movie recording time available
  2. (2) No. of remaining focus bracketing/multiple-exposure shots
  3. (3) Maximum burst/no. of remaining multiple-exposure shots
  4. (4) No. of available shots/sec. until self-timer shoots
  5. (5) Focus bracketing/HDR mode/multiple-exposure shooting/pre-continuous shooting
  6. (6) Shooting mode
  7. (7) AF area
  8. (8) AF operation
  9. (9) Card
  10. (10) Image quality
  11. (11) Drive mode
  12. (12) Still photo cropping/aspect ratio
  13. (13) Accessory attached indicator
  1. (14) Touch Shutter/create folder
  2. (15) Electronic level
  3. (16) Battery level
  4. (17) Image Stabilizer (IS mode)
  5. (18) Histogram (brightness/RGB)
  6. (19) Quick Control button
  7. (20) Anti-flicker shooting
  8. (21) White balance/white balance correction
  9. (22) Picture Style
  10. (23) Metering mode
  11. (24) Subject to detect
  12. (25) Display simulation/OVF sim. view assist
  13. (26) Magnify button
  14. (27) Focal length
  1. (28) No. of remaining interval timer shots
  2. (29) Interval timer shooting/bulb timer shooting
  3. (30) AF point (1-point AF)
  4. (31) HDR shooting (PQ)
  5. (32) Flash ready/FE lock/high-speed sync
  6. (33) Electronic shutter/silent shutter function
  7. (34) AE lock
  8. (35) Shutter speed
  9. (36) Aperture value
  10. (37) Exposure level indicator (exposure compensation amt./AEB range)
  1. (38) Digital tele-converter
  2. (39) Overheating warning
  3. (40) Set AF point to center
  4. (41) Still photo image quality warning
  5. (42) AEB/FEB
  6. (43) Wi-Fi function
  7. (44) Wi-Fi signal strength/airplane mode
  8. (45) GPS connection status
  9. (46) Bluetooth function
  10. (47) ISO speed
  11. (48) Highlight tone priority
  12. (49) Exposure compensation

Note

  • You can specify the information displayed in response to pressing the INFO button ().
  • The electronic level is not displayed when the camera is connected via HDMI to a television.
  • Other icons may be displayed temporarily after setting adjustments.

Movie Recording Screen

Each time you press the INFO button, the information display will change.

  • The display will show only the settings currently applied.

Standby

Movie recording in progress

  1. (1) Movie recording time available
  2. (2) Shooting mode
  3. (3) Number of movies that can be recorded
  4. (4) Card for recording/playback
  5. (5) Movie recording size
  6. (6) Headphone volume
  7. (7) Audio recording level (manual input)
  8. (8) Movie Servo AF
  9. (9) Movie self-timer
  10. (10) Overheat control
  11. (11) Image Stabilizer (IS mode)
  12. (12) Brightness info (histogram/waveform monitor)
  1. (13) Movie shooting button (start recording)
  2. (14) Digital zoom
  3. (15) HDR movie recording
  4. (16) Exposure level indicator (metering levels)
  5. (17) Audio recording level indicator
  6. (18) Elapsed recording time
  7. (19) Recording status (left: main movie, right: proxy/sub movie)
  8. (20) Overheating warning
  9. (21) Movie recording in progress
  10. (22) Movie shooting button (stop recording)

Caution

  • You can specify the information displayed in response to pressing the INFO button ().
  • The electronic level is not displayed when the camera is connected via HDMI to a television.
  • The grid and histogram cannot be displayed during movie recording (and if they are currently displayed, recording a movie will clear the display).
  • When movie recording starts, the movie recording remaining time will change to the elapsed time.

Note

  • Other icons may be displayed temporarily after setting adjustments.

Scene Icons

With the Mode dial set to Scene Intelligent Auto, the camera detects the type of scene and sets all settings accordingly. The detected scene type is indicated in the upper left of the screen.

Subject

Background

 People*1 Subjects Other Than People Background Color
In Motion*2 Nature/Outdoor Scene In Motion*2 Close*3
Bright Portrait (bright) Portrait with motion (bright) Nature/outdoor scene (bright) Non-portrait with motion (bright) Close non-portrait (bright) Gray
Backlit Portrait (bright/backlit) Portrait with motion (bright/backlit) Nature/outdoor scene (bright/backlit) Non-portrait with motion (bright/backlit) Close non-portrait (bright/backlit)
Blue Sky Included Portrait (blue sky included) Portrait with motion (blue sky included) Nature/outdoor scene (blue sky included) Non-portrait with motion (blue sky included) Close non-portrait (blue sky included) Light blue
Backlit Portrait (blue sky included/backlit) Portrait with motion (blue sky included/backlit) Nature/outdoor scene (blue sky included/backlit) Non-portrait with motion (blue sky included/backlit) Close non-portrait (blue sky included/backlit)
Sunset *4 Non-portrait (sunset) *4 Orange
Spotlight Portrait (spotlight) Non-portrait (spotlight) Close non-portrait (spotlight) Dark blue
Dark Portrait (dark) Non-portrait (dark) Close non-portrait (dark)
With Tripod*1 Portrait (dark/tripod used)*5*6 *4 Nature/outdoor scene (dark/tripod used)*5*6 *4
  • 1: An icon for subjects other than people is displayed in time-lapse movie recording, even if people are detected.
  • 2: Not displayed during movie recording.
  • 3: Displayed when the attached lens has distance information. With an extension tube or close-up lens, the icon displayed may not match the actual scene.
  • 4: Icons of scenes selected from those that can be detected are displayed.
  • 5: Displayed when all the following conditions apply.
    The shooting scene is dark, it is a night scene, and the camera is mounted on a tripod.
  • 6: Displayed with any of the following lenses.
    • EF300mm f/2.8L IS II USM
    • EF400mm f/2.8L IS II USM
    • EF500mm f/4L IS II USM
    • EF600mm f/4L IS II USM
    • Image Stabilizer lenses released in and after 2012.
  • Slower shutter speeds are used when the conditions in both *5 and *6 apply.

Note

  • For certain scenes or shooting conditions, the icon displayed may not match the actual scene.

Playback Screen

Each time you press the INFO button, the information display will change.

  • The display will show only the settings currently applied.

Basic information display for still photos

  1. (1) HDR View Assist
  2. (2) Bluetooth function
  3. (3) Wireless signal strength
  4. (4) Wi-Fi function
  5. (5) Battery level
  6. (6) Current image no./total images/no. of images found
  7. (7) Shutter speed
  8. (8) Aperture value
  9. (9) Exposure compensation amt.
  1. (10) Already sent to a computer/smartphone
  2. (11) Rating
  3. (12) Image protection
  4. (13) Card no.
  5. (14) Folder no.-File no.
  6. (15) Image quality/edited image/cropping/frame grab
  7. (16) ISO speed
  8. (17) Highlight tone priority

Caution

  • If the image was taken by another camera, certain shooting information may not be displayed.
  • It may not be possible to play back images taken with this camera on other cameras.

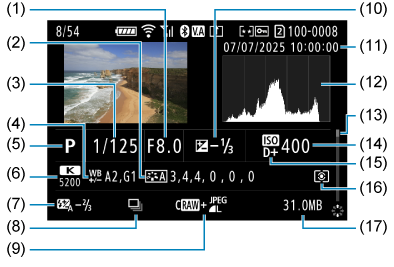

Detailed information display for still photos 1

  1. (1) Aperture value
  2. (2) Picture Style (image characteristics/setting details)
  3. (3) Shutter speed
  4. (4) White balance correction/bracketing
  5. (5) Shooting mode/multiple exposure/frame grab
  6. (6) White balance
  7. (7) Flash exposure compensation amt./bounce
  8. (8) First image of scene
  1. (9) Image quality/edited image/cropping
  2. (10) Exposure compensation amt.
  3. (11) Shooting date and time
  4. (12) Histogram (brightness/RGB)
  5. (13) Scroll bar
  6. (14) ISO speed
  7. (15) Highlight tone priority
  8. (16) Metering mode
  9. (17) File size
  • For simplicity, explanations are omitted for items also included in Basic information display for still photos, which are not shown here.
  • For images captured in RAW+JPEG/HEIF shooting, indicates RAW file sizes.
  • Lines indicating the image area are displayed for images taken with the aspect ratio set () and with RAW or RAW+JPEG set for image quality.
  • Images with added cropping information are displayed cropped.
  • During flash photography without flash exposure compensation, [Flash photography without flash exposure compensation] will be displayed.
  • [Bounce flash photography] indicates images shot with bounce flash photography.
  • [Multiple exposures] indicates images captured in multiple-exposure shooting.
  • [Still photo from test shots] indicates test shots for time-lapse movies.
  • [Images created and saved after performing processing] indicates images created and saved by performing RAW image processing, resizing, cropping, HEIF to JPEG conversion, or frame-grabbing.
  • [Cropping (images)] indicates images cropped and then saved.
  • HEIF images that have been converted to JPEGs are labeled [JPEG].

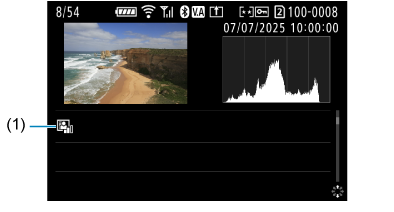

Detailed information display for still photos 2

  1. (1) Auto Lighting Optimizer

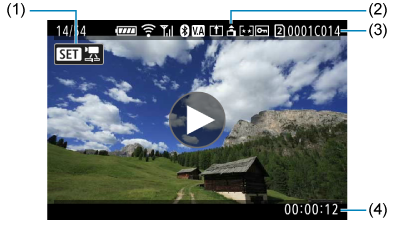

Basic information display for movies

  1. (1) Movie playback
  2. (2) Movie orientation information
  1. (3) Reel and clip numbers
  2. (4) Recording time/time code

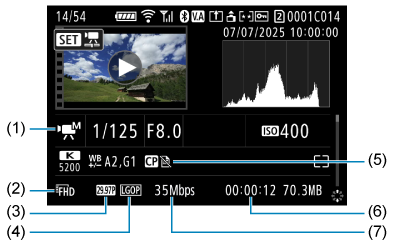

Detailed information display for movies 1

  1. (1) Shooting mode
  2. (2) Movie recording size
  3. (3) Frame rate (during playback)
  4. (4) Compression method
  1. (5) Picture Style (image characteristics/setting details)/color filter/custom picture
  2. (6) Recording time/time code
  3. (7) Bit rate

Note

  • During movie playback, [Fineness] and [Threshold] parameters of [Sharpness] in Picture Styles are indicated as in [*, *].

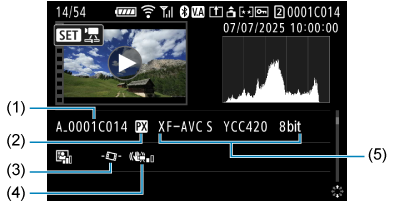

Detailed information display for movies 2

  1. (1) Movie file name
  2. (2) Proxy movie
  3. (3) Movie auto level
  1. (4) Image Stabilizer (Movie digital IS)
  2. (5) Movie recording format
