Part Names

  1. (1) Mode dial
  2. (2) Dial Dial
  3. (3) Shutter button
  4. (4) Movie shooting button
  5. (5) RF lens mount index
  6. (6) Image sensor
  7. (7) Grip
  8. (8) Contacts
  9. (9) Lens mount
  10. (10) Built-in flash
  11. (11) Microphone (monaural)
  12. (12) Speaker
  13. (13) Focal plane mark Focal plane mark
  1. (14) Strap mount
  2. (15) AF-assist beam/red-eye reduction/self-timer/remote control lamp
  3. (16) Terminal cover
  4. (17) Lens release button
  5. (18) Lens lock pin
  6. (19) External microphone IN terminal External microphone IN terminal
  7. (20) Remote control terminal
  8. (21) Dioptric adjustment slider
  9. (22) Tripod socket
  10. (23) Card/battery compartment cover
  11. (24) Card/battery compartment cover lock
  12. (25) Serial number (body number)
  13. (26) Body cap
  1. (1) Hot shoe
  2. (2) Eyecup
  3. (3) Viewfinder eyepiece
  4. (4) Screen
  5. (5) / Power switch
  6. (6) Viewfinder sensor
  7. (7) Terminal cover
  8. (8) Access lamp
  9. (9) INFO Info button
  10. (10) Quick Control/Set Quick Control/Set button
  11. (11) / Left/ISO speed setting button
  1. (12) Down key// Down/self-timer/drive mode selection button
  2. (13) Playback Playback button
  3. (14) AE lock/ AE lock/FE lock/magnify button
  4. (15) / AF point selection/index/reduce button
  5. (16) //Erase Up/exposure compensation/erase button
  6. (17) / Right/Flash button
  7. (18) Cross keys
  8. (19) MENU Menu button
  9. (20) Digital terminal Digital terminal
  10. (21) HDMI mini OUT terminal HDMI micro OUT terminal
  11. (22) DC cord hole

Mode dial

Features on the Mode dial are grouped into Basic Zone, Creative Zone, and movie recording modes.

(1) Basic Zone

All you do is press the shutter button. The camera sets everything to suit the subject or scene for shooting.

Scene Intelligent Auto: Scene Intelligent Auto ()

: Hybrid Auto ()

Special scene: Special scene ()

Portrait Portrait Food Food
Landscape Landscape Night Portrait
Sports Sports Handheld night scene Handheld Night Scene
Panning HDR backlight control HDR Backlight Control
Close-up Close-up Silent shutter Silent Mode

Creative filters: Creative filters ()

Grainy B/W Grainy B/W Miniature effect Miniature effect
Soft focus Soft focus HDR art standard HDR art standard
Fish-eye effect Fish-eye effect HDR art vivid HDR art vivid
Water painting effect Water painting effect HDR art bold HDR art bold
Toy camera effect Toy camera effect HDR art embossed HDR art embossed

(2) Creative Zone

These modes give you more control for shooting various subjects as desired.

P Program AE
Tv Shutter-priority AE
Av Aperture-priority AE
M Manual exposure

(3) Movie recording

For a variety of movie recording ().

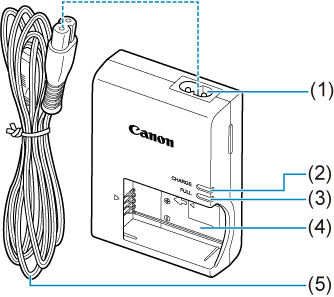

Battery Charger LC-E17

Charger for Battery Pack LP-E17 ().

  1. (1) Power plug
  2. (2) Charge lamp
  3. (3) Full-charge lamp
  4. (4) Battery slots

Attaching the Strap

Pass the end of the strap through the strap mount from the bottom, then pass it through the strap buckle as shown. Pull the strap to take up any slack and make sure the strap will not loosen from the buckle.
