Wireless Multiple-Flash Photography with Flash Ratio

This section describes wireless multiple-flash shooting in manual flash mode. For each firing group, you can set flash output in a range from full 1/1 output to 1/128 output, in 1/3-stop increments. All settings are configured on the sender.

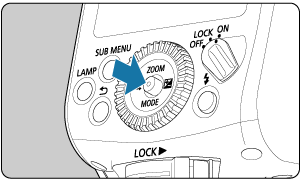

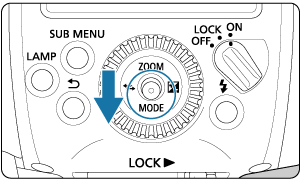

  1. Select MODE with the joystick.

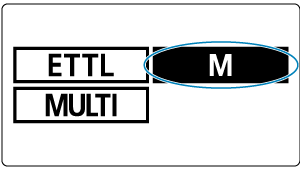

  2. Set the flash mode to M.

    • Press the joystick vertically or horizontally or turn Select dial to select M, then push the joystick straight in.

  3. Push the joystick straight in.

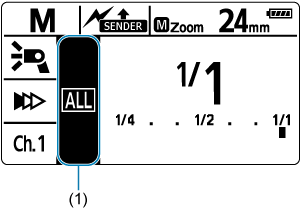

  4. Select the item shown in (1).

    • Press the joystick vertically or horizontally or turn Select dial to select the item, then push the joystick straight in.

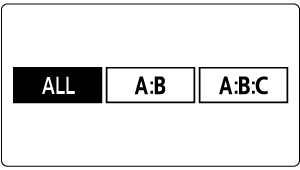

  5. Configure the firing group setting.

    • Press the joystick horizontally or turn Select dial to select a firing option from the following. You can use wireless multiple flash shooting with firing groups A, B, and C added.

      • For the same output from all receivers, select ALL.
      • To set the output for firing groups A and B, select A:B.
      • To set the output for firing groups A, B, and C, select A:B:C.

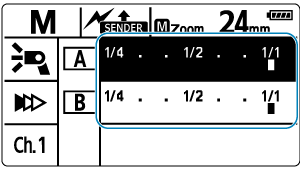

  6. Select a firing group.

    • If you selected A:B or A:B:C in Step 2, push the joystick vertically and then push the joystick up and down, or turn Select dial to select the group to set the flash output.

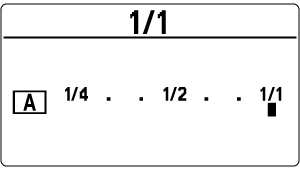

  7. Set the flash output.

    • Push the joystick straight in.
    • Press the joystick horizontally or turn Select dial to set the flash output, then push the joystick straight in.
    • Repeat Step 3 and 4 to set the flash output of all the groups.

  8. Take the picture.

    • Each group fires at the specified flash output.

Note

  • When ALL is set, A, B, or C can be set as the firing group for receivers. All the groups fire at the set flash output.
