Firing Test Flash/Modeling Flash from Receivers

Test flash or modeling flash () can be fired in radio transmission wireless flash photography from EL-1 (Ver.2) Speedlites set as receivers.

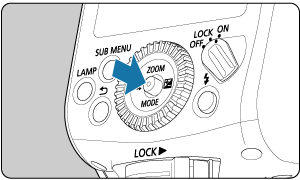

  1. Push the joystick straight in.

  2. Fire the flash.

    [Test flash firing]

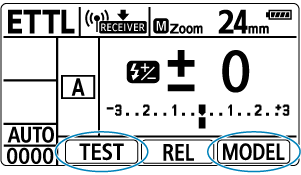

    • Press the joystick vertically or horizontally or turn Select dial to select TEST, then push the joystick straight in.

    [Modeling flash] ()

    • Press the joystick vertically or horizontally or turn Select dial to select MODEL, then push the joystick straight in.
    • The wireless system fires test or modeling flash after the receiver transmits a firing signal to the sender.

Caution

  • Modeling flash is not possible from a receiver unit with cameras released up to 2011 or with EOS REBEL T100/4000D/3000D, EOS REBEL T7/1500D/2000D, EOS REBEL T6/1300D or EOS REBEL T5/1200D.
  • For precautions on modeling flash, see Modeling Flash.
  • When C.Fn-02-1 is set on the sender unit (), modeling flash will not be fired even if you select MODEL.

Note

  • When there are multiple senders (), the firing signal is transmitted to the main sender.
