Autoflash with Two Receiver Groups

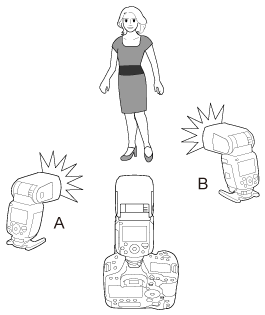

Receivers can be divided into firing groups A and B, and you can adjust the lighting balance (flash ratio) between them.

Exposure is automatically controlled, so that the groups' combined output provides standard exposure.

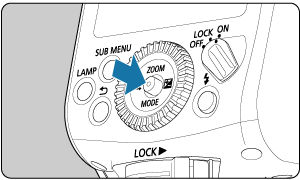

  1. Push the joystick straight in.

    • Complete these settings on each receiver.

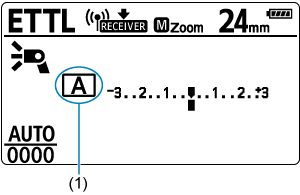

  2. Set the receiver firing group in (1).

    • Select either A or B for the firing group.
    • Set one receiver to A and another to B.

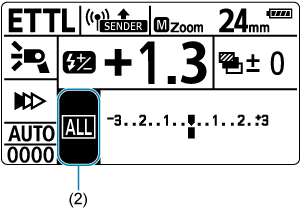

  3. Set the sender firing group in (2).

    • Complete steps 3–5 on the sender.
    • Press the joystick vertically or horizontally or turn Select dial to select the item, then push the joystick straight in.

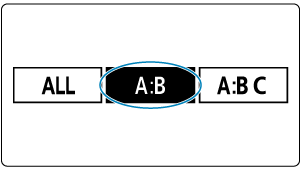

  4. Set to A:B.

    • Press the joystick horizontally or turn Select dial to select A:B, then push the joystick straight in.

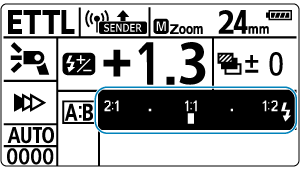

  5. Set the A:B flash ratio.

    • Push the joystick straight in to select the item shown in the figure.
    • Press the joystick horizontally or turn Select dial to set the A:B flash ratio, then push the joystick straight in.

  6. Take the picture.

    • The receivers fire at the flash ratio you have set.
