Changing Camera Settings

You can operate the terminal to change the settings of the receiver camera.

  1. Start the EMR application and display the Multi View screen 1 (), Multi View screen 2 (), or the Single View screen ().

  2. Tap [Multi-Camera Settings] and change the settings as needed.

Caution

  • Set the high-frequency anti-flicker shooting setting the same way on all cameras.
  • Some menu items may not be available for operation.

Saving, Loading, and Copying Camera Shooting Settings

Camera shooting settings (values configured by tapping []) can be saved to a file, loaded from a file, or copied to other connected cameras.

  1. Display Multi-View Screen 1 () or Multi-View Screen 2 ().

  2. Tap the camera settings icon.

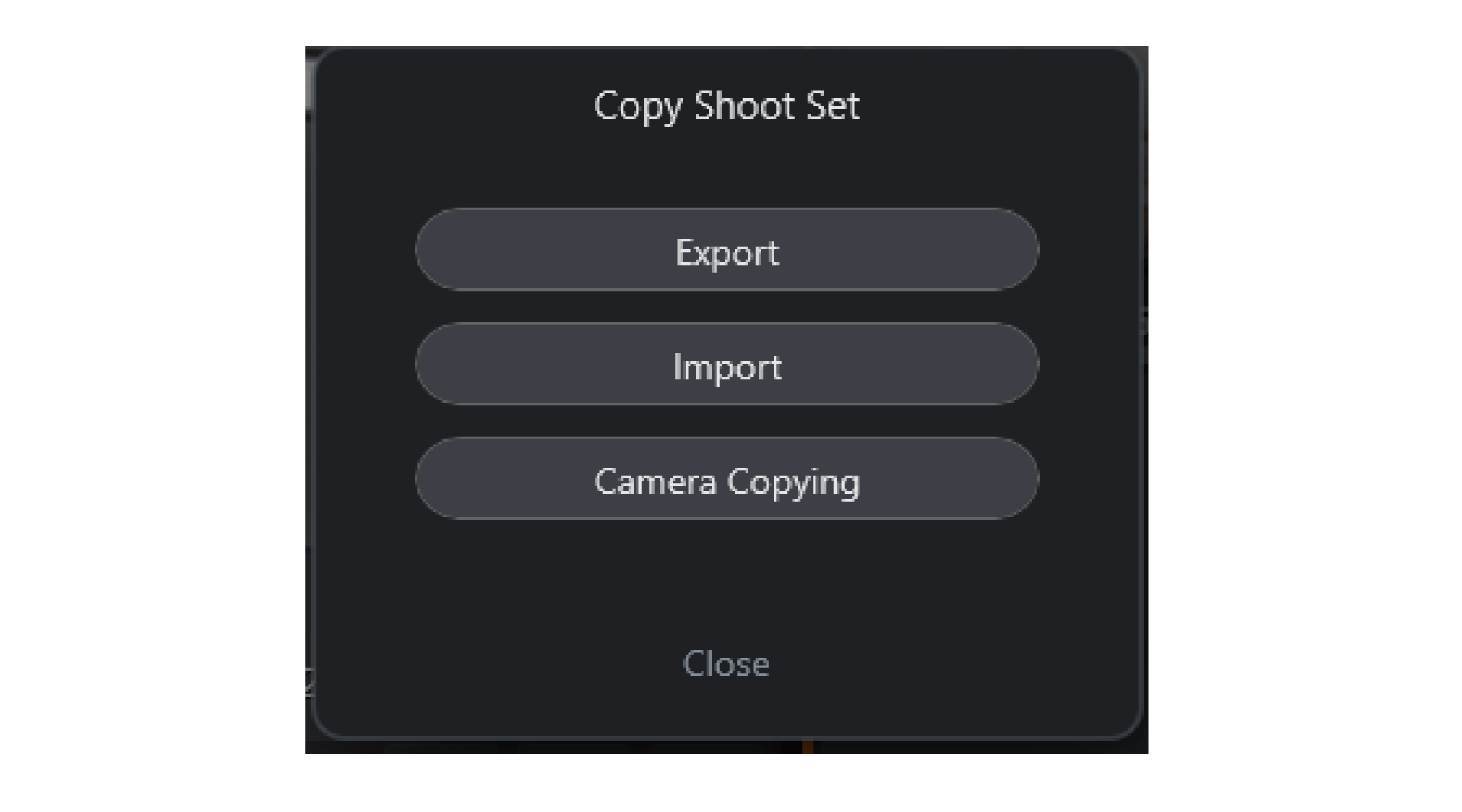

  3. Tap [Copy Shoot Set].

  4. Select an action to perform.

    • Export

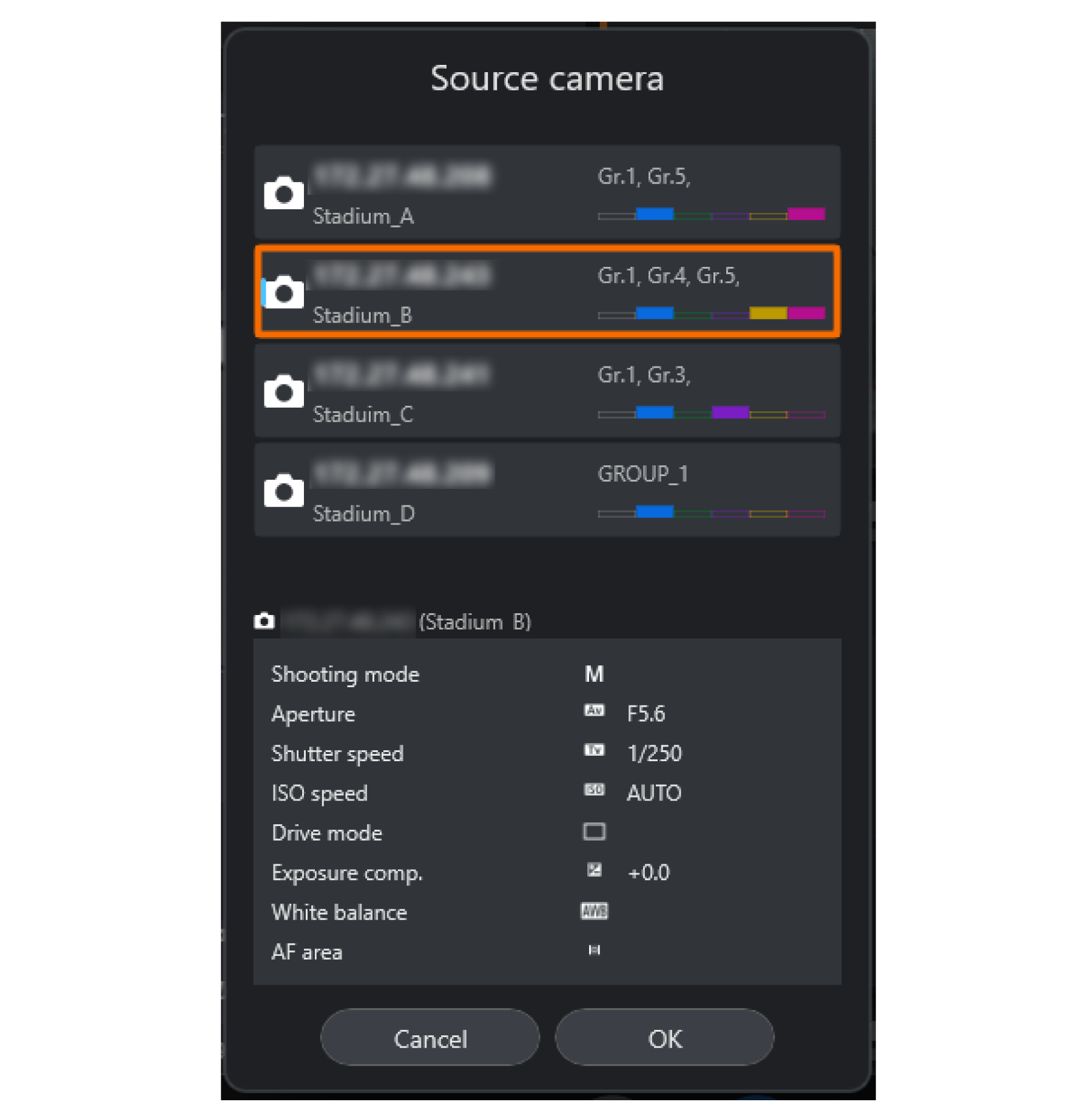

      Saves camera settings. On the [Source camera] screen, select the camera with settings to save, then tap [OK]. Export the settings on the next screen displayed.

    • Import

      Applies saved camera settings to other cameras. Open the folder where the settings file is stored and select it. On the [Target camera] screen, select cameras to apply the settings to, then tap [OK] on the confirmation screen displayed next.

    • Camera Copying

      Enables you to copy manually configured shooting settings from one camera to others. Tap this button, select the camera with shooting settings to copy on the [Source camera] screen displayed, then tap [OK]. On the [Target camera] screen, select cameras to copy the settings to, then tap [OK] on the confirmation screen displayed.
