HDR/C. Log View Assist

The appearance of images in HDR shooting () with [Shooting: HDR shooting (PQ)] or in shooting with custom pictures () applied, as shown on the camera screen or non-HDR display devices connected via HDMI, can be made to resemble the appearance on HDR display devices.

Caution

  • Recorded movies will look different from how they appear on the screen.

View Assist Display Conditions

  • [Shooting: HDR shooting (PQ)] is set to [HDR PQ]

  • [Gamma/Color Space] in [Shooting: Custom Picture] is set as follows

    • Canon Log 3 / C.Gamut
    • PQ / BT.2020

    • HLG / BT.2020

    HLG stands for Hybrid Log-Gamma.

  • The following gamma/color space is selected in Registering look files, before setting [Look File] to [On]

    • HDR PQ(BT.2100)
    • HDR HLG(BT.2100)

View Assist Display Settings

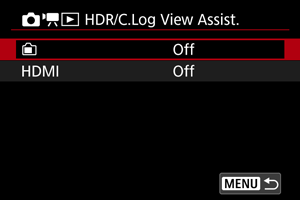

  1. Select [Shooting: HDR/C.Log View Assist.] (, ).

  2. Select screen or viewfinder display.

    • Use View Assist display on the screen.

    • HDMI

      Use view-assisted display on non-HDR display devices connected via HDMI.

  3. Select an option.

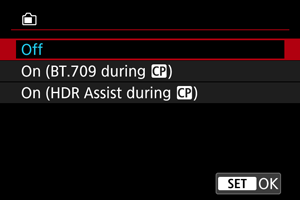

    For the screen

    • On (BT.709 during )

      When the camera is set to [HDR PQ], converted images are displayed that resemble how the images would look on an HDR display device.

      Image display with a custom picture applied involves basic conversion to a standard gamma/color space.

    • On (HDR Assist during )

      When the camera is set to [HDR PQ], converted images are displayed that resemble how the images would look on an HDR display device.

      Image display with a custom picture applied involves conversion so that subjects with intermediate brightness resemble how they would appear on an HDR display device.

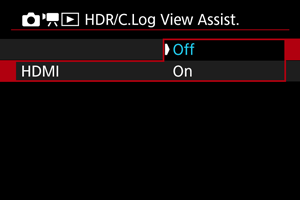

    [HDMI]

    • Select [On].

Note

  • [View Assist] is shown on the information display screen during movie recording with View Assist.
  • View Assist is also used with magnified view.
  • View Assist display settings do not affect the images captured.
