Attaching and Detaching RF/RF-S Lenses

Caution

  • Do not look at the sun directly through any lens. Doing so may cause loss of vision.
  • When attaching or detaching a lens, set the camera's power switch to Power off.
  • If the front part (focusing ring) of the lens rotates during autofocusing, do not touch the rotating part.

Tips for avoiding smudges and dust

  • When changing lenses, do it quickly in a place with minimal dust.
  • When storing the camera without a lens attached, be sure to attach the body cap to the camera.
  • Remove smudges and dust on the body cap before attaching it.

Attaching a Lens

  1. Remove the caps.

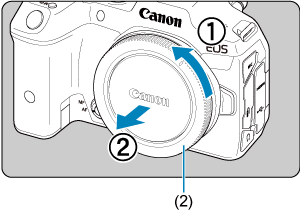

    • Remove the rear lens cap (1) and body cap (2) by turning them as shown by the arrows.

  2. Attach the lens.

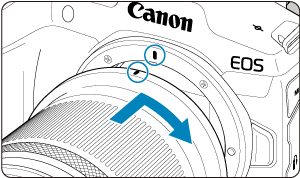

    • Align the red mount index on the lens with the red mount index on the camera and turn the lens as shown by the arrow until it clicks in place.

  3. Set the focus mode to (AF ).

    • AF stands for autofocus.
    • MF stands for manual focus. Autofocus is disabled.

    • For RF lenses without a focus mode switch

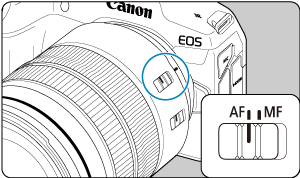

      • With [Set-up: Focus mode switch (AF/MF)] set to [Enable] (), set the focus mode switch on the front of the camera to AF.

      • With [Set-up: Focus mode switch (AF/MF)] set to [Disable] (), set [Autofocus: Focus mode] to [AF].

    • For RF lenses with a focus mode switch

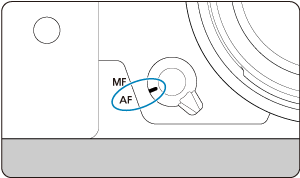

      Set the lens's focus mode switch to AF. The setting on the lens takes precedence, and the camera's focus mode switch and [Set-up: Focus mode switch (AF/MF)] setting have no effect.

  4. Remove the front lens cap.

Detaching a Lens

  • While pressing the lens release button, turn the lens as shown by the arrow.

    • Turn the lens until it stops, then detach it.
    • Attach the rear lens cap to the lens you removed.
