Shooting Information Display

You can customize the details and screens of information shown on the screen or in the viewfinder when you shoot.

Customizing Information on the Screen

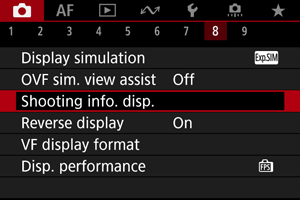

  1. Select [Shooting: Shooting info. disp.].

  2. Select [Screen info. settings].

  3. Select screens.

    • Press the Up keyDown key keys to select screens of information to show on the camera.
    • For information you prefer not to display, press the Quick Control/Set button to clear the checkmark [Check].
    • To edit the screen, press the INFO button.
  4. Edit the screen.

    • Press the Up keyDown key keys to select options to show on the information screen.
    • For items you prefer not to display, press the Quick Control/Set button to clear the checkmark [Check].
    • Select [OK] to register the setting.

Customizing Information in the Viewfinder

  1. Select [Shooting: Shooting info. disp.].

  2. Select [VF info/toggle settings].

  3. Select screens.

    • Press the Up keyDown key keys to select screens of information to show on the camera.
    • For information you prefer not to display, press the Quick Control/Set button to clear the checkmark [Check].
    • To edit the screen, press the INFO button.
  4. Edit the screen.

    • Press the Up keyDown key keys to select options to show on the information screen.
    • For items you prefer not to display, press the Quick Control/Set button to clear the checkmark [Check].
    • Select [OK] to register the setting.

Viewfinder Vertical Display

You can select how viewfinder information is displayed when you are shooting still photos vertically.

  1. Select [Shooting: Shooting info. disp.].

  2. Select [VF vertical display].

  3. Select an option.

    • On

      Information is automatically rotated, making it easier to read.

    • Off

      Information is not automatically rotated.

Grid

A grid can be displayed on the screen and viewfinder.

  1. Select [Shooting: Shooting info. disp.].

  2. Select [Grid display].

  3. Select an option.

Histogram

You can select the content and display size of the histogram.

  1. Select [Shooting: Shooting info. disp.].

  2. Select [Histogram disp].

  3. Select an option.

    • Select the content ([Brightness] or [RGB]) and display size ([Large] or [Small]).

Lens Information Display

You can display information about the lens in use.

  1. Select [Shooting: Shooting info. disp.].

  2. Select [Lens info display].

  3. Select an option.

    • Focus distance disp

      You can display focus distance when using RF lenses. In focus distance display, you can select the timing and unit of measurement.

    • Focal length disp

      You can display the focal length of the lens in use.

    • SA variable amount

      You can display the amount of correction set when using lenses featuring spherical aberration control.

      SA: spherical aberration

Clearing Settings

  1. Select [Shooting: Shooting info. disp.].

  2. Select [Reset].

  3. Select [OK].
