Part Names

Attaching the Strap

(1) Mode dial
(2) Strap mount
(3) Main dial
(4) Multi-function button
(5) Shutter button
(6) Movie shooting/ movie-photo playback toggle button
(7) Self-timer lamp/AF-assist beam
(8) Grip (battery compartment)
(9) Contacts
(10) Lens mount

(11) Flash sync contacts
(12) Multi-function shoe
(13) RF lens mount index
(14) Microphone
(15) Strap mount
(16) Tally lamp
(17) Image sensor
(18) Lens release button
(19) Lens lock pin
(20) Shoe cover
(21) Body cap

(1) Eyecup
(2) Viewfinder eyepiece
(3) Dioptric adjustment knob
(4) Focal plane mark
(5) Terminal cover
(6) External microphone IN terminal
(7) Headphone terminal
(8) Remote control terminal
(9) HDMI OUT terminal
(10) Digital terminal
(11) Viewfinder sensor
(12) Quick control dial
(13) Speaker

(14) // Power switch
(15) AF start button
(16) Info button
(17) Cross keys
(18) Playback button
(19) / Multi-function lock/erase button
(20) Quick Control/Set button
(21) Left button
(22) Down button
(23) Up button
(24) Right button
(25) Access lamp

(1) Screen
(2) Menu button
(3) Serial number (body number)
(4) Tripod socket
(5) Accessory positioning hole
(6) Battery compartment cover
(7) Battery compartment cover lock

(8) Multi-controller (can also be pressed straight in)
(9) AE lock button
(10) / AF point selection/index/magnify/reduce button
(11) Card slot cover
(12) Card slot
(13) DC cord hole

Mode dial

The Mode dial is divided into Basic Zone and Creative Zone modes.

In Basic Zone modes, the camera determines optimal settings for the subject or scene. In Creative Zone modes, you can shoot with your preferred exposure or other settings.

(1) Basic Zone

(2) Creative Zone / (3) Custom shooting mode

Mode dial and shooting modes

Mode Dial		Shooting Mode
Mode Dial		Still Photo Shooting		Movie Recording
Basic Zone		Scene Intelligent Auto		Scene Intelligent Auto movie
	Special scene	Portrait	Panning	Smooth skin movie Movie for close-up demos Movie IS mode
		Smooth skin	Close-up
		Group photo	Food
		Landscape	Night portrait
		Panoramic shot	Handheld night scene
		Sports	HDR backlight control
		Kids	Silent shutter
Creative Zone	Fv	Flexible-priority AE		Movie auto exposure
	P	Program AE		Movie auto exposure
	Tv	Shutter-priority AE		Movie shutter-priority AE
	Av	Aperture-priority AE		Movie aperture-priority AE
	M	Manual exposure		Movie manual exposure
	B	Long (bulb) exposures		Movie auto exposure
		Program AE		Slow/fast motion movie
	Custom shooting mode	Custom shooting		Custom movie recording

Battery Charger LC-E17 (sold separately)

Charger for Battery Pack LP-E17 ().

(1) Power plug
(2) Charge lamp

(3) Full-charge lamp
(4) Battery slot

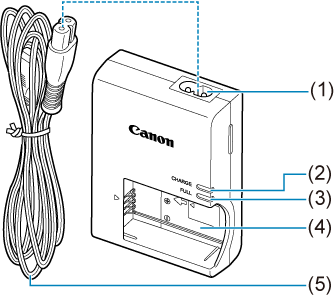

Battery Charger LC-E17E (sold separately)

Charger for Battery Pack LP-E17 ().

(1) Power cord socket
(2) Charge lamp
(3) Full-charge lamp

(4) Battery slot
(5) Power cord

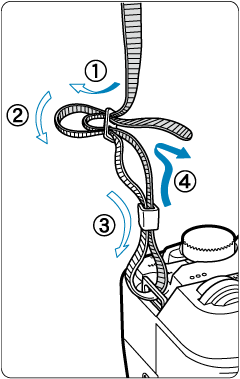

Attaching the Strap

Pass the end of the strap through the strap mount from the bottom, then pass it through the strap buckle as shown. Pull the strap to take up any slack and make sure the strap will not loosen from the buckle.
