Adjusting the 3D CG Orientation

When the position and angle of the 3D CG displayed in the MREAL space have deviated, launch Model Alignment Tool and make adjustments.

With [Move and Rotate the World Coordinate System], adjust the orientation and angle of the world coordinate system set for the 3D CG.

With [Move and Rotate the Target Coordinate System], adjust the position and orientation of the 3D CG assigned to the target.

Launch Model Alignment Tool with the following procedure.

When Adjusting the Orientation with [Move and Rotate the World Coordinate System]

  1. Select [Basic Settings] in the MREAL Configuration Tool window.

  2. Click [Start Tool] of [Move and Rotate the World Coordinate System].

When Adjusting the Orientation with [Move and Rotate the Target Coordinate System]

  1. Select [Target] in [Option Settings] of the MREAL Configuration Tool window.

  2. Select the target to adjust in [List of Targets], and click [Edit].

  3. Click [Start Tool] of [Move and Rotate the Target Coordinate System].

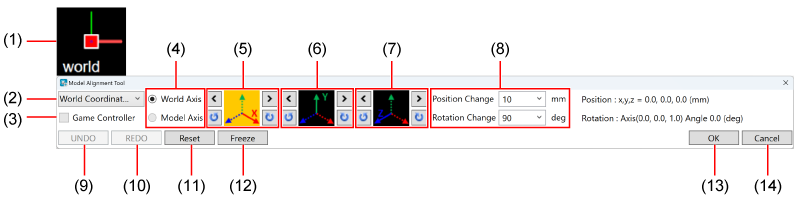

Model Alignment Tool Window

  • (1) Displays the coordinate axis of the coordinate system to be adjusted.
  • (2) Select the coordinate system (world coordinate system / target coordinate system) to be adjusted.
  • (3) Place a check mark in this checkbox when using a game controller for adjustment.
  • (4) Select the coordinate system to be the reference for movement and rotation.
  • (5) Move and rotate in the X-axis direction.
  • (6) Move and rotate in the Y-axis direction.
  • (7) Move and rotate in the Z-axis direction.
  • (8) Set the amount of change for adjustment with a single click.
  • (9) Undo the last operation.
  • (10) Redo the undone operation.
  • (11) Reset the adjustments.
  • (12) Freeze the position of the 3D CG, and adjust the positional relationship between the actual image and 3D CG.
  • (13) Save the settings and close the Model Alignment Tool window.
  • (14) Close the Model Alignment Tool window without saving the settings.

When Using a Game Controller

  1. Place a check mark in [Game Controller].

  2. Right-click in the following area, and select [Game Controller Setting...].

  3. Assign the adjustment items to the controls of the game controller in the displayed window.
