Displaying Images on External Monitors

The images of the MREAL Display can be displayed on up to two external monitors.

  1. Launch HMD Mirroring Tool.

    Click [HMD Mirroring Tool Launch] in the Basic Settings window of MREAL Configuration Tool.

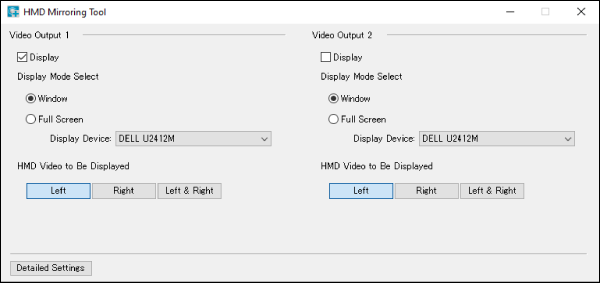

  2. Set the output specifications.

    • The image being displayed by the MREAL Display is displayed on the external monitors with a check mark placed in [Display].
    • Select [Window] or [Full Screen] in [Display Mode Select].
    • Select the model names of the monitors to use for display in [Display Device].
    • Select which of the images of the MREAL Display to display in [HMD Video to Be Displayed].
    • When, for example, displaying 3D CG of a large size, we recommend clicking [Detailed Settings] and then placing a check mark in [Set Frame Rate Limit to 30 FPS] in the displayed window. By reducing the load on the PC, it may be possible to prevent a decrease in display frame rate.

Note

  • In the screen of the image output destination, you can use the right-click menu of the PC. With the right-click menu, you can perform tasks such as changing the display mode and ending HMD Mirroring Tool.
