Creating a Registered Map

When MREAL will be experienced in the same MREAL space repeatedly, you can increase the stability of camera tracking by creating a registered map.

Press button <A> of the MREAL Display, select [Create map] in the displayed menu, and select an item.

The menu displayed by pressing button <A> of the MREAL Display can also be displayed by clicking [].

With [Look around], create a registered map centered on the MREAL user who looks around to observe the 3D CG.
With [Move around], create a registered map for the MREAL user to move around to observe the 3D CG.

Looking Around

When [Fix the position of the canvas.] appears, wait at the position (start point) to view the 3D CG.
Press button <A>, select [Start mapping], and press button .
Map around the start point.

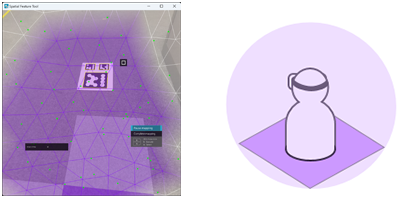

- A purple square (A) to indicate the position of the “canvas” (the range in which mapping will occur) is displayed at the feet of the user.
- Look around within the range of the square at your feet to perform mapping so that the entire canvas turns purple.
Map the area to the front, back, left, and right of the start point.
- Move forward, backward, leftward, and rightward from the mapping start point. When you move within the canvas, the color of the square at your feet changes.
- Look around within the range of the square at your feet to perform mapping so that the entire canvas becomes the color of the square.
Register the map.
- When mapping is finished, press button <A>, select [Complete mapping], and press button .
- When the [Register map] message appears, select [Yes] and press button .
- Press button on the MREAL Display or press the [Esc] key of the PC to end Spatial Feature Tool.

Note

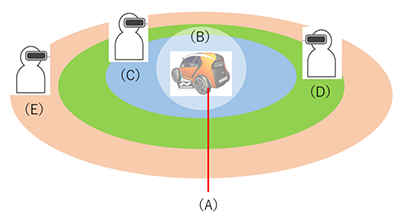

Map the close range (C).
- When [Fix the position of the canvas.] appears, align the center of the sphere indicating the canvas (position to display the 3D CG: B) with the position to display the 3D CG (A).
- Move to the front/back of the sphere to determine the size of the canvas, and press button . The area seen in the MREAL Display is recognized as the mapping data and displayed in blue in the image.
- Perform mapping so that the entire canvas turns blue while moving the range of the canvas.
Map the medium range (D).
- Move away from the canvas until green is displayed. Perform mapping so that the entire canvas turns green while moving the range of the canvas.
Map the far range (E).
- Move away from the canvas until orange is displayed. Perform mapping so that the entire canvas turns orange while moving the range of the canvas.
Register the map.
- When mapping is finished, press button <A>, select [Complete mapping], and press button .
- When the [Register map] message appears, select [Yes] and press button .
- Press button on the MREAL Display or press the [Esc] key of the PC to end Spatial Feature Tool.

If you press button <A> on the MREAL Display, select [Check map], and press button , you can check the status of the registered map.

If there is an unmapped area, select [Add map] and press button .
Add feature points, etc. and then perform mapping.
When mapping is finished, press button <A>, select [Complete mapping], and press button .

In the following cases, delete the registered map and then create a new registered map.

Select [Spatial Feature] in [Basic Settings] of the MREAL Configuration Tool window.
Click [Detailed Settings].
Select [Delete] in [Registered Map Information] on the [Spatial Features] tab.
Select [Yes] in the displayed window.
Click [OK] at the bottom of the [Spatial Features] tab.
